sensors & Accessories

8-Hardwire Zone Expander PC5108 كرت توسعة 8 زون

Dual Technology Motion Detector with Pet Immunity LC-104-PIMW كاشف حركة + مايكروويف

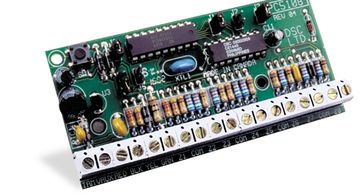

8-Hardwire Zone Expander PC5108 كرت توسعة 8 زون



• Adds 8 hardwire zones

• AUX power, 125 mA (PTC protected)

• Compatible with PC1616, PC1832 and PC1864 control panels


PowerSeries Wireless Receivers RF5132 مستقبل اشارة لاسلكي

Dual Technology Motion Detector with Pet Immunity LC-104-PIMW كاشف حركة + مايكروويف

8-Hardwire Zone Expander PC5108 كرت توسعة 8 زون



• Supports 32 wireless zones, 16 wireless keys
• All wireless detectors are fully supervised for communication integrity
• Compatible with PC1616, PC1832 and PC1864 control panel
• RF5132-433 is compatible with PC585, PC1616, PC1832 and PC1864 control panels
• Available in both 433 MHz and 868 MHz


Dual Technology Motion Detector with Pet Immunity LC-104-PIMW كاشف حركة + مايكروويف

Dual Technology Motion Detector with Pet Immunity LC-104-PIMW كاشف حركة + مايكروويف

Dual Technology Motion Detector with Pet Immunity LC-104-PIMW كاشف حركة + مايكروويف

• Anti-masking (LC-103-PIMSK)
• Form ‘A’ or ‘C’ alarm contact and tamper switch
• Digital signal analysis
• Pet immunity up to 55 lb (25 kg)
• Quad Linear Imaging Technology for sharp analysis of body dimensions and differentiation from backgrounds and pets Microwave detection based on Doppler concept
• Unique microwave motion sensor module with micro-strip patch antenna
• Advanced ASIC-based electronics Height installation calibration free 2-way PIR/ microwave sensitivity adjustment
• User-friendly installation with or without swivel-mount bracket available separately: LC-L1ST

PIR Motion Detector with Pet Immunity LC-100-PI كاشف حركة مضاد للحشرات والحيوانات

PNV37M Outdoor / Indoor Window and Sliding Door Dual Detector with Anti-Masking and Pet Immunity

Dual Technology Motion Detector with Pet Immunity LC-104-PIMW كاشف حركة + مايكروويف



• The LC-100-PI (Form ‘A’ contact) and LC-120-PI (Form ‘C’ contact) detectors feature intelligent signal analysis for reliable detection, pet immunity up to 55 lb (25 kg) and am slim design that complements any décor.
• Form ‘A’ or ‘C’ alarm contact and tamper switch
• Digital signal analysis
• Pet immunity up to 55 lb (25 kg)
• Quad Linear Imaging Technology for sharp analysis of body dimensions and differentiation from backgrounds and pets
• Advanced ASIC-based electronics
• Compact design for residential installations
• Adjustable variable pulse count
• PIR sensitivity adjustment
• Height installation calibration free
• Available in packages of 6 (LC-100-PI-6PK)
• LC-L1ST bracket available separately
• Corridor lens available separately

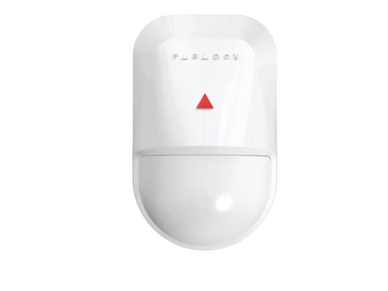

NV5 High-Performance Infrared Motion Detector

PNV37M Outdoor / Indoor Window and Sliding Door Dual Detector with Anti-Masking and Pet Immunity

PNV37M Outdoor / Indoor Window and Sliding Door Dual Detector with Anti-Masking and Pet Immunity

• Catch performance
• Even detection, no dead zones within the protected range
• Response to movements - slow and fast
• False alarm immunity Paradox technology, Auto Pulse Signal Processing (APSP) and Dual/ Single Edge Processing enables flexibility in setting detection response time compared to false alarm immunity
• Digital temperature compensation — same catch capability at specified operating temperatures
•  RF immunity

PNV37M Outdoor / Indoor Window and Sliding Door Dual Detector with Anti-Masking and Pet Immunity

PNV37M Outdoor / Indoor Window and Sliding Door Dual Detector with Anti-Masking and Pet Immunity

PNV37M Outdoor / Indoor Window and Sliding Door Dual Detector with Anti-Masking and Pet Immunity

• Outdoor / indoor protection solution for windows and sliding doors
• Pet Immune detection - Optical with pet discrimination geometry to support Super Pet Immunity
• Anti-masking - Dedicated chip Active IR detection for sprayed liquids and blocking items up to 30 cm (12 in.)
• Dual detectors controlled by Full Authority Digital Electronics Control (FADEC)
• Pre-mask visual LED indicator
• Dual tamper detection
• Creep zone detection
• Easy installation, optional mounting bracket

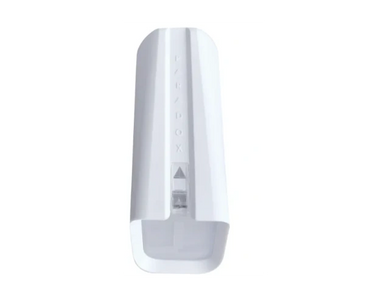

Dual Technology Curtain Detector

Outdoor Motion Sensor (Double PIR & Microwave) with Pet Immunity LC-151 كاشف حركة خارجي

Bravo 5 360° Ceiling-Mount PIR Motion Detectors BV-500 كاشف حركة 360 درجة

• dual technology detector,
• infrared and microwave at 24 Ghz
• suitable for creating a type of protection “curtain” for doors and windows.
•  Back tamper with  anti-opening tamper device,
• Signalling LED with its disabling jumper.

Bravo 5 360° Ceiling-Mount PIR Motion Detectors BV-500 كاشف حركة 360 درجة

Outdoor Motion Sensor (Double PIR & Microwave) with Pet Immunity LC-151 كاشف حركة خارجي

Bravo 5 360° Ceiling-Mount PIR Motion Detectors BV-500 كاشف حركة 360 درجة



• emperature compensation for improved catch performance at critical temperatures
• Patented Multi-Level Signal Processing (MLSP) for accurate detection of human IR energy over a broad range of temperatures
• Sensitivity adjustment to configure the detector for normal or hostile environments
• High-level static and transient protection
• Exceptional white light immunity
• Excellent RF immunity
• Digital signal analysis for consistent detection throughout the coverage pattern


Outdoor Motion Sensor (Double PIR & Microwave) with Pet Immunity LC-151 كاشف حركة خارجي

Outdoor Motion Sensor (Double PIR & Microwave) with Pet Immunity LC-151 كاشف حركة خارجي

Outdoor Motion Sensor (Double PIR & Microwave) with Pet Immunity LC-151 كاشف حركة خارجي



• Frequency: 24.125 GHz
• Microwave detection based on Doppler concept
• N.O. & N.C. Relays switched at the same time
• Pet immunity up to 77 lb (35 kg)
• 16 levels of PIR sensitivity adjustment and 3 microwave sensitivity groups
• Temperature compensation
• Microcontroller signal processing
• Front and back tamper protection
• Audible indication of walk test and intruder detection
• Unique waterproof sealed plastic design
• Detection range: up to 39 ft (12 m)
• Detect human intruders walking or running
• No maintenance required
• High RFI/EMI immunity
• Protection from: direct sunlight, wind up to 30 m/sec, snow and rain, small animals, removal of the top cover and removal from mounting bracket
• Rain and dust proof: IP65


Acuity Glass break Detectors AC-100 كاشف كسر الزجاج

Shock Sensor SS-102 كاشف اهتزاز وصدمات

Outdoor Motion Sensor (Double PIR & Microwave) with Pet Immunity LC-151 كاشف حركة خارجي



• Detecting the breakage or cutting of glass
• advanced dual- path microprocessor signal analysis
• Range max. 10m
• Sensitivity adjustment
• Alarm signaling
• LED indicator displaying the device


Shock Sensor SS-102 كاشف اهتزاز وصدمات

Shock Sensor SS-102 كاشف اهتزاز وصدمات

Shock Sensor SS-102 كاشف اهتزاز وصدمات



• Unique bi-colored LED to indicate minor or major attacks
• Anti-tamper protection
• Moisture-resistant electronics module
• Sensitivity adjustment
• High immunity to low-frequency false alarms and radio interference
• Compatible with all makes of control panels
• SS -102 is able to monitor for minor vibrations (and count them to a preset limit) and for major attacks at the same time


Beams - Window Type Barrier 0.5-1M بيم للشبابيك

Shock Sensor SS-102 كاشف اهتزاز وصدمات

Shock Sensor SS-102 كاشف اهتزاز وصدمات



• Consists of receiver and transmitter IR module.
  4 IR LED
  Distance between barrier 6m
  Column height 50 to 100cm
  Relay output
  Gray, white, brown color option
  Compatible with all alarm panels.
